Blackmagic Design
DeckLink Capture Card

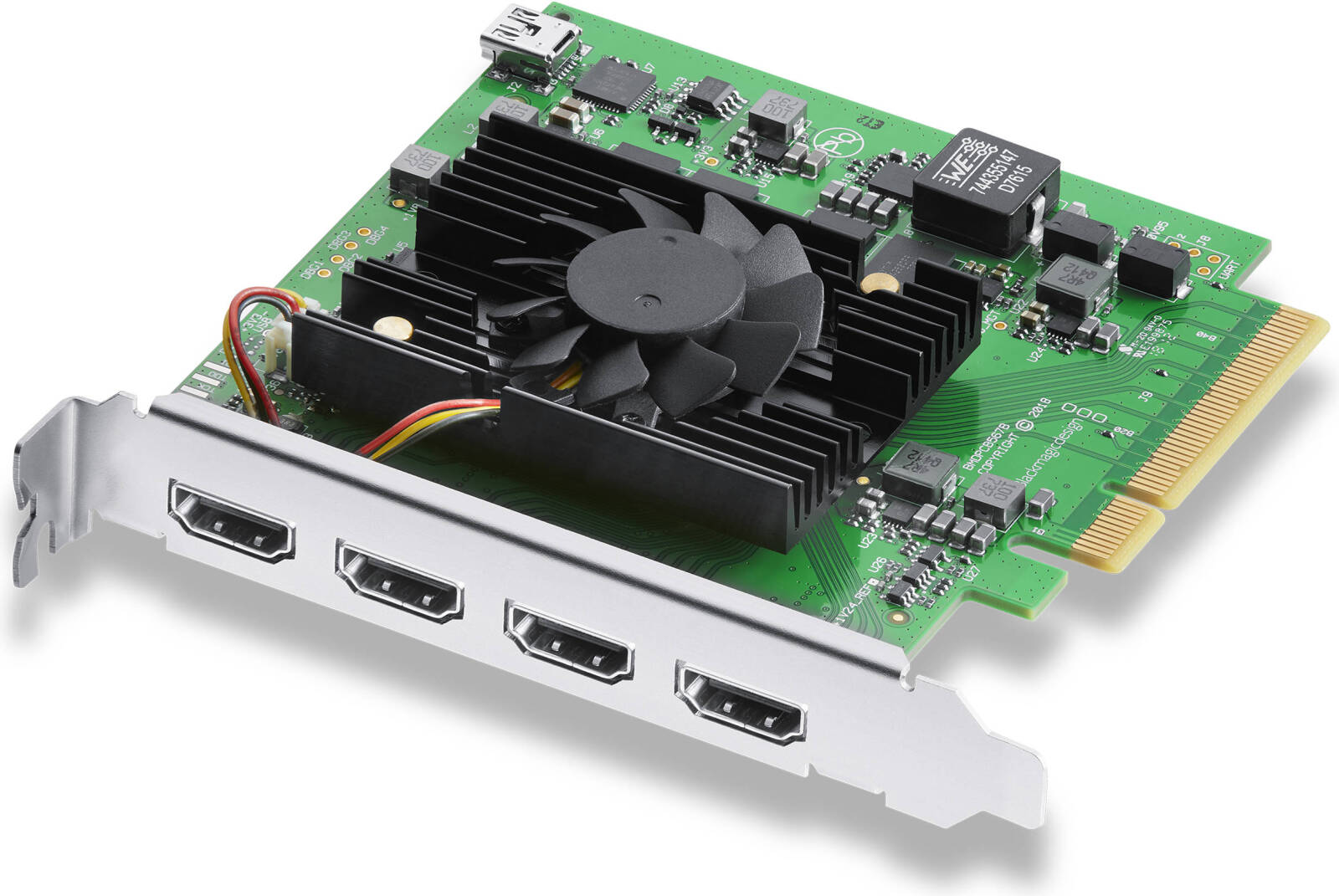

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!
Specification
Category
Specification
Video Inputs
4 x HDMI 2.0b
HDMI Audio Inputs
8 Channels embedded in SD/HD/UHD/4K
Computer Interface
PCI Express 8 lane Gen 3 (compatible with 8 and 16 lane PCI Express slots)
Supported Codecs
AVC-Intra, AVCHD, XDCAM EX/HD, DNxHR, Apple ProRes (various), Uncompressed 8/10-bit 4:2:2, and more
Software Included
Media Express, Disk Speed Test, Blackmagic Desktop Video Utility, Driver (Mac/Windows/Linux)
Software Applications
Wirecast, vMix, OBS, and more (see full list)
Video Standards
SD: 525i59.94 NTSC, 625i50 PAL; HD: 720p/1080p/1080i; Ultra HD & 4K: 2160p/4Kp (various rates)
DVI Standards
640x480p to 2560x1600p, multiple resolutions up to 2560x1600p
Audio Sampling
48 kHz, 24-bit
HDMI Color Precision
8, 10, 12-bit RGB 4:4:4; 8-bit YUV 4:2:2, 4:2:0 depending on mode
HDMI Configuration
Deep Color, HDR
HDMI Video Sampling
4:4:4, 4:2:2, 4:2:0
Color Space
REC 601, REC 709, REC 2020
Physical Installation
PCI Express 8 lane Gen 3, compatible with 8/16 lane slots (Mac/Windows/Linux)
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma, Windows 10/11 (64-bit), Linux
Power Consumption
23 W
Operating Temperature
5° to 40°C (41° to 104°F)
Storage Temperature
-20° to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
What’s Included
DeckLink Quad HDMI Recorder, Software
Warranty
3 Year Limited Manufacturer’s Warranty
Back to products
Blackmagic Design DeckLink 8K Pro G2 Capture Card, 8K PCIe Capture & Playback Card, Supports SD, HD, UHD, 4K & 8K Formats, 4x Bidirectional 12G-SDI Ports, HDMI 2.1 Input & Output | BDLKHCPRO8K12GG2
Original price was: $600.00.$420.00Current price is: $420.00.
Blackmagic Design DeckLink Quad HDMI Recorder Capture Card, 4 HDMI 2.0b Inputs, Support for 4K & Ultra HD, Multiple Codec Formats, Compatible with macOS, Windows & Linux | DeckLink Capture Card
$370.00
Record up to DCI 4K60 HDMI Video
PCIe Interface Card
4 x HDMI 2.0b Inputs
Switchable-Mode HDMI Inputs
Up to 4K30 12-Bit 4:2:2 in All Modes
8-Channel, 24-Bit 48 kHz Embedded Audio
macOS, Windows, and Linux Compatible
Description
Additional information
| Brand |
Blackmagic Design |
|---|---|
| Model |
DeckLink Quad HDMI Recorder Capture Card |
| Date first available |
28 January; 2025 |
